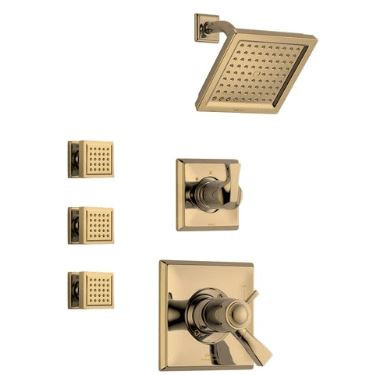

Delta with Thermostatic Trim, Diverter Trim and 3 Body Sprays

Delta Dryden Monitor 17 Series Shower System Includes:

• Dryden Monitor 17 Series Shower Trim with Shower Head (T17251)
• Dryden 3 Setting Diverter (T11851)
• 3 Body Sprays (50150)
• 6 Setting Diverter Rough-In Valve (R11000)
• Mixing Rough-In Valve (R10000-UNBXHF)

Delta Dryden Monitor 17 Shower Package Features:

• Pressure Balanced Valve & Trim Features:
  • Pressure balanced bath mixing valve with Scald-Guard
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
  • Back-to-back installation capable
  • Solid brass forged valve body
  • Lever volume control handle; temperature adjustment dial
  • Field adjustable to limit rotation into hot water zone
  • All parts are replaceable from the front of the valve
  • Maximum dial rotation adjustable between 90 and 180 degrees

• Diverter Trim Features:
  • Three function diverter: 2 individual positions, 1 shared position
  • 1/2" rough-in

• Body Spray Features:
  • 30° up and down adjustment
  • Matching finish spray face
  • Touch-clean nubs
  • 1/2" rough-in
  • 2.0gpm @ 80psi
  • Solid brass construction
  • Special Note : Installation of body sprays requires a 1/2" male threaded pipe fitting to extend 1/4" beyond the finished surface

• Diverter Rough-In Features:
  • Three port diverter rough-in valve
  • For use with 3 or 6 function diverters
  • Forged brass body

Delta Smart Features:

• ADA Compliant : Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, this shower package meets those specifications.
• MultiChoice Valve : Flexibility is the big benefit of the MultiChoice Universal Valve. Once the MultiChoice rough is installed, future shower function upgrades or style changes can easily be made without altering the plumbing behind the wall.
• Monitor Technology: Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3° F.
• With Volume Control : This Smart Feature provides separate controls for the temperature and volume, allowing you to set the temperature and keep it consistent shower after shower.
• Touch Clean Technology : Only Delta faucets are equipped with Touch-Clean soft, rubber nubbins that allow you to easily wipe away calcium and lime build-up with the touch of a finger.

Delta Dryden Monitor 17 Series Shower System Specifications

• Shower Valve Trim Dimensions: 7"W x 7"H
• Valve Type: Dual-function pressure balance cartridge
• Diverter Trim Dimensions: 4-1/2"W x 4-1/2"H
• Shower Head Flow Rate: 2.5 gpm @ 80 psi
• Body Spray Flow Rate: 1.75 gpm @ 80psi
