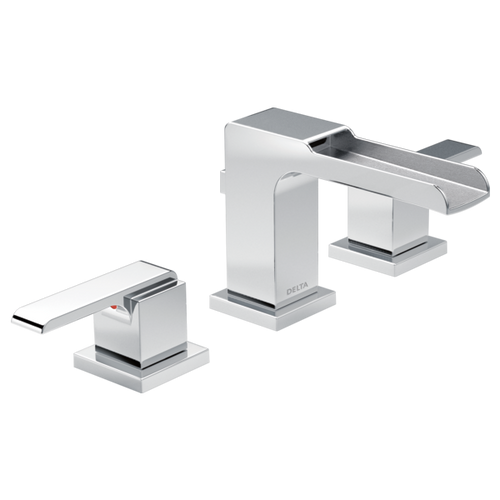

Delta 3568LF-MPU Ara Two Handle Lavatory Faucet with Channel Spout Chrome

Delta 3568LF-MPU Ara Two Handle Lavatory Faucet with Channel Spout

• With defined geometric angles and edges, the Ara Bath Collection creates a streamlined look of contemporary elegance.
• The Ara Bath Collection features a full product offering for the bath in both enclosed and channel spout options.
• 3-hole 4-16" installation
• Rigid channel spout
• 5 1/8" long, 4 3/16" high
• 3 3/16" from deck to outlet
• Metal lever handle(s)
• Red/blue indicator(s)
• Metal pop-up
• 3/8" compression fittings
• 2 1/4" max. deck thickness
• 32" minimum InnoFlex supply lines below the deck included
• 1.5 gpm @ 60 psi, 5.7 L/min @ 414 kPa
• DIAMOND Valve

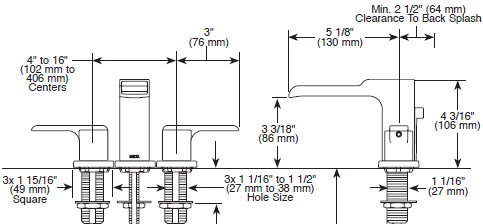

Standard Specifications:

• Solid brass fabricated end valves.
• Widespread - 4" (102 mm) to 16" (406 mm) centers.
• 5 1/8" (130 mm) long, 4 3/16" (106 mm) high, rigid spout.
• 1/4 turn stops.
• Hot and cold stems are interchangeable.
• Lever handles. Control mechanism is the diamond embedded ceramic disc cartridge.
• Red/blue button covers on handle for hot/cold identification.
• 3/8" O.D. straight pex supply tubes, 39" (991 mm) long.
• Models with suffix "MPU" have metal drain with pop-up type fitting with plated flange and stopper.
• Maximum flow rate 1.32 gpm @ 60 PSI.
• Maximum mounting deck thickness is 2 1/4" (57 mm).
